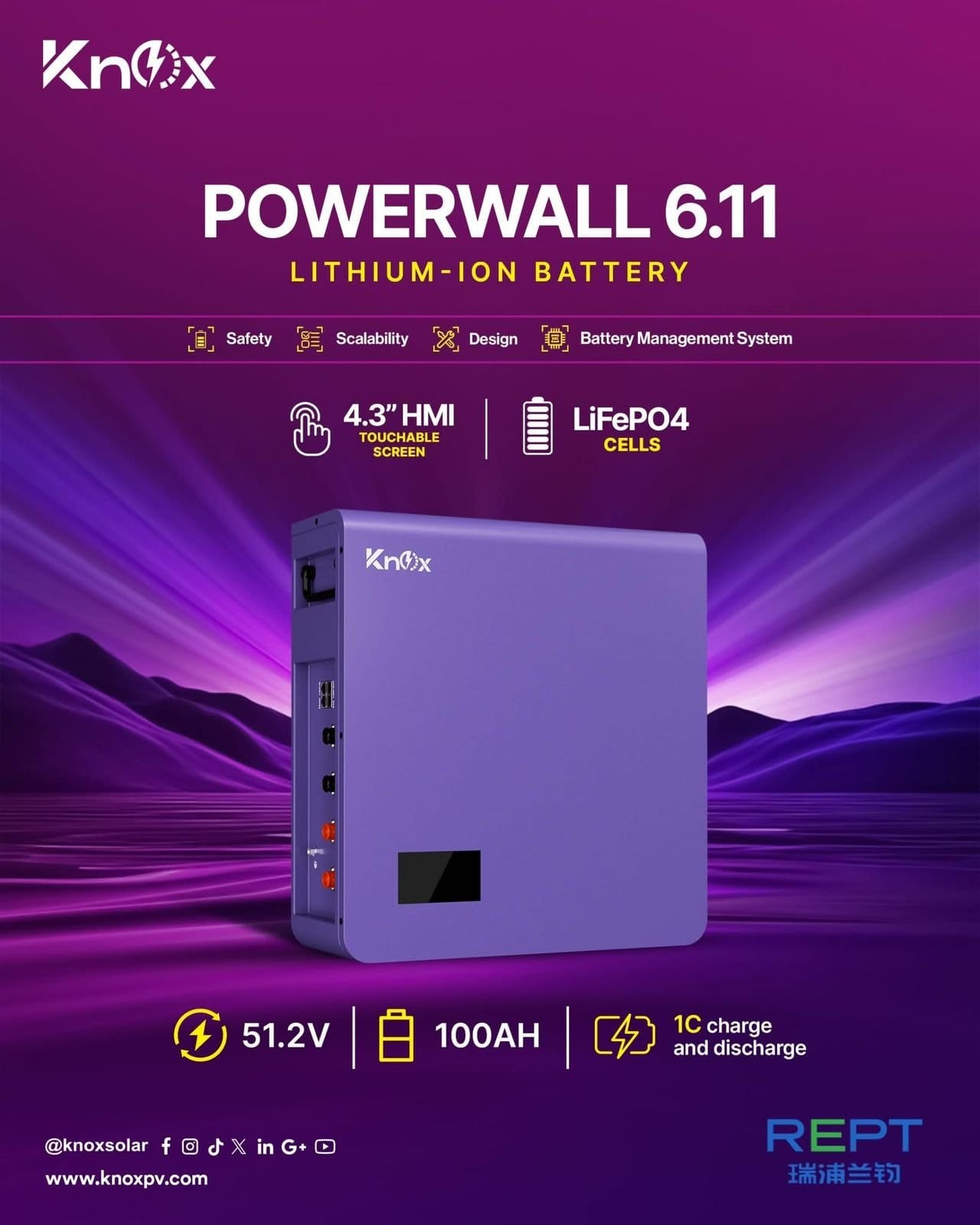

Knox Power Wall 6.11 – 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution
Original price was: ₨ 225,000.₨ 220,000Current price is: ₨ 220,000.
The Knox Power Wall 6.11 is a 5.12kWh, 51.2V 100Ah wall-mounted lithium-ion battery designed for safe, scalable, and efficient energy storage. Built with long-life LiFePO4 cells and an advanced BMS, it supports up to 15 units in parallel and integrates easily with major inverter brands via RS485 and CAN. Its sleek IP20-rated design features a 4.3″ touch LCD screen for easy monitoring, wide operating temperatures, and zero maintenance, making it ideal for solar, backup, or off-grid applications
- High Performance Energy Storage – 5.12kWh capacity (51.2V, 100Ah) for residential or commercial use
- Superior Safety – Built-in BMS with protections: OVP, LVP, OCP, OTP, LTP, and short-circuit
- Long Battery Life – >6000 cycles with a 10-year calendar life
- Scalable Design – Supports up to 15 units in parallel for expanded energy needs
- Compact Wall-Mount Build – Sleek IP20-rated housing with quick lock and press-to-release terminals
- Smart Monitoring – 4.3″ LCD touch screen + PC software for full system diagnostics
- Inverter Compatibility – RS485 & CAN communication; supports protocol switching via LCD
| Model | LIO 5.32-IP20 |
| Nominal Voltage [V] | 51.2 |
| Nominal Capacity [Ah] | 100 |
| Total Energy [Wh] | 5120 |
| Dimension (W*D*H, mm) | 442*470*160 |
| Weight [Kg] | 46.0 |
| Max. Charging Current [A] | 100 |
| Max. Discharging Current [A] | 100 |
| Pulse Discharge Current | 120A @2S |
| Charging Voltage [V] | 55.2~57.6 |
| End of Discharge Voltage [V] | 48 |
| Operation Humidity | 0~95% RH (No condensing) |
| Operating Temperature Range | Charge: 0 ~ +55°C; Discharge: -20 ~ +55°C |
| Cycle Life^{(1)} | >6000 |
| Designed Calendar Life | 10 Years |
| Communication interface | For inverter : RS485, CAN For battery to battery: LINK-IN, LINK-OUT |
| Protection | Over voltage, Low voltage, Over current, Over Temperature, Low Temperature, Short circuit |
| Parallel Support | Yes, Max. 15 Sets |
| Series Support | Not support |
