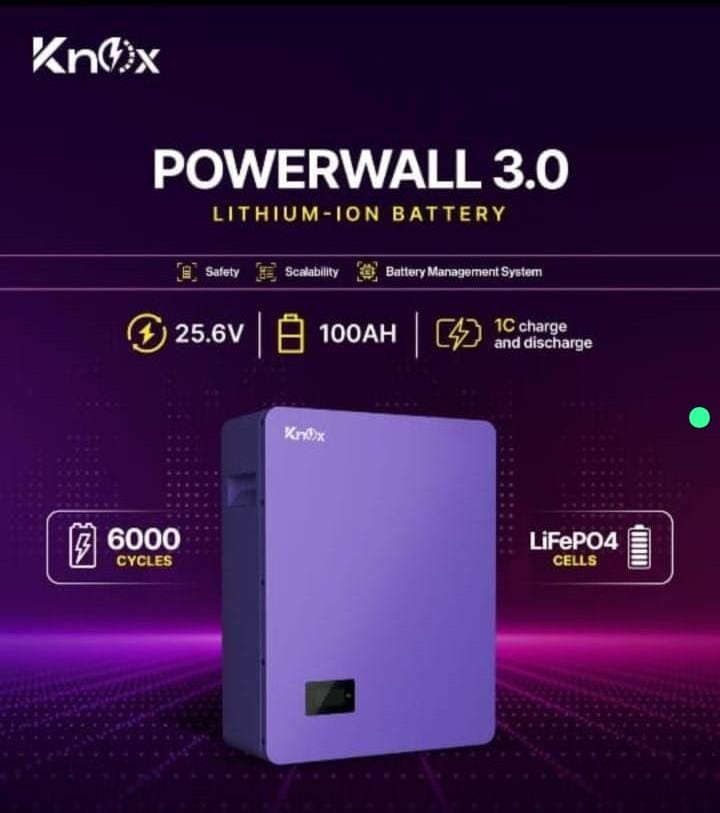

Knox Power Wall 3.0 – 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution With Series Support

Name: Knox Power Wall 3.0 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution With Series Support
SKU: 16296
Availability: InStock

Original price was: ₨ 108,000.Current price is: ₨ 105,000.

Knox Power Wall 3.0 – 25.6V 100Ah IP20 Lithium-Ion Battery | 2.56kWh Wall-Mounted Energy Storage Solution

The Knox Power Wall 3.0 is a high-performance 25.6V 100Ah LiFePO4 battery pack offering a total energy capacity of 2.56kWh, ideal for solar energy storage, backup power, and off-grid applications. Built with brand-new A-grade prismatic LiFePO₄ cells, this compact and safe wall-mounted battery is engineered for long service life and exceptional reliability.

With over 6000 cycles at 80% DOD, advanced protection circuits, and a smart LCD display, this battery ensures intelligent power management for both residential and commercial use.

Add to wishlist

Compare

Category: Batteries

Key Features:

Reliable Performance: Over 6000 cycles for long-term savings
Smart Monitoring: Built-in LCD screen with real-time battery data
Compact & Scalable: Stack up to 4 units in parallel or 2 in series
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Energy Storage: 2.56kWh (25.6V 100Ah)
Battery Life: 6000+ cycles @ 80% DOD (25°C, 0.5C)

Technical Specifications:

Parameter	Value
Model	LIO 2.56-IP20
Nominal Voltage	25.6V
Nominal Capacity	100Ah
Energy	2560Wh
Battery Configuration	8S1P
Continuous Discharge Current	100A
Max Discharge Current (Peak)	120A
Recommended Discharge Current	50A
Max Charge/Discharge Current	100A
Charge Cut-off Voltage	28.8V
Discharge Cut-off Voltage	20.8V
Recommended DOD	80%
Cycle Life	>6000 cycles
Communication	RS485
Mounting	Wall-mounted
Display	LCD Screen
Ingress Protection	IP20
Working Temperature	Charge: 0°C to +55°C / Discharge: -20°C to +60°C
Storage Temp (Optimal)	5°C to +35°C
Humidity Range	40%–80% RH
Terminal Type	M6
Dimensions (LxWxH)	350 × 180 × 450 mm
Weight	25.1 ± 0.5 kg
Scalability	Up to 2 in series, 4 in parallel
