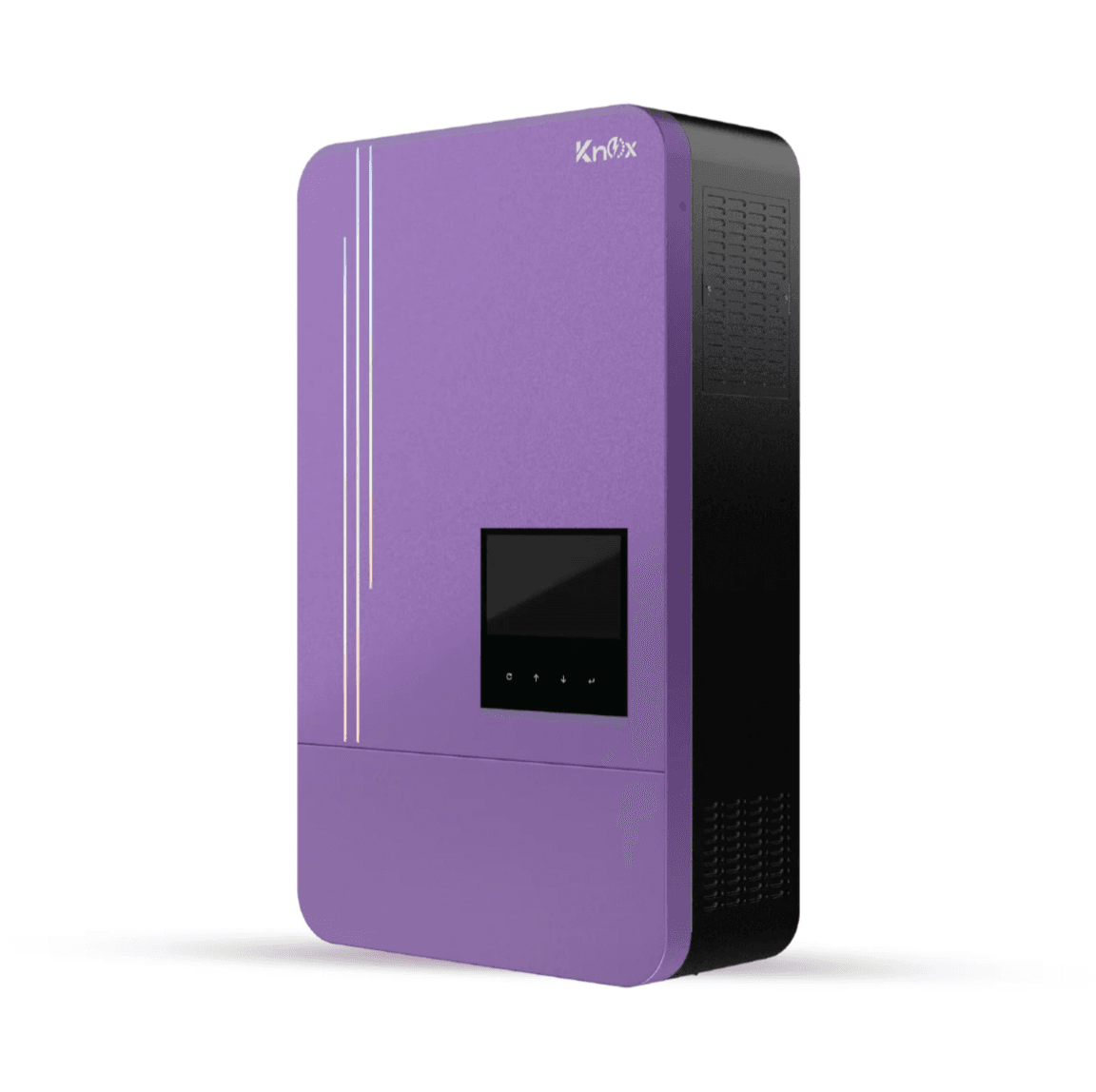

KNOX KRYPTON 6.2KW PV 9000 IP21 HYBRID SOLAR INVERTER

Knox Krypton 6kW Hybrid Inverter PV 9000 is a highly efficient and versatile inverter designed for both residential and commercial solar energy systems. Here are the detailed features and specifications:

Key Features:
Hybrid Functionality: This inverter combines the capabilities of a solar inverter with a battery charger, making it suitable for both on-grid and off-grid applications.
High Efficiency: Optimized for high energy conversion efficiency, ensuring maximum utilization of the generated solar power.
Multiple MPPT Trackers: Equipped with multiple Maximum Power Point Tracking (MPPT) trackers to maximize energy harvesting from solar panels.
Battery Compatibility: Compatible with both lead-acid and lithium-ion batteries, offering flexibility in energy storage solutions.
Smart Monitoring: Features real-time monitoring capabilities with built-in Wi-Fi for mobile monitoring via Android and iOS apps.
Durability: Designed to withstand harsh environmental conditions with an IP66 rating, making it suitable for outdoor installations.
Automatic UPS Switching: Provides automatic Uninterruptible Power Supply (UPS) switching with a fast response time, ensuring continuous power supply.
High Charge/Discharge Current: Supports high charge and discharge currents, enhancing the overall energy throughput.
Customizable Settings: Allows for customizable charge and discharge time settings, making it user-friendly for battery management.
Peak Shaving Control: Supports peak shaving control in both “self-use” and “generator” modes, optimizing energy usage.
Technical Specifications:
Nominal AC Power: 6 kW
Max DC Input Voltage: 500 VDC
Max DC Input Current: 30 A
Battery Charging Voltage: 54.6 VDC
Grid Connection: Suitable for both on-grid and off-grid connections
Protection Features: Includes overvoltage, undervoltage, short circuit, and overload protection
Enclosure Rating: IP66 for outdoor use
Design: Compact and lightweight for easy installation
Efficiency: Maximum conversion efficiency of 95%
MPPT Voltage Range: 120 VDC to 430 VDC
Nominal Output Voltage: 230 VAC
Output Waveform: Pure sine wave
Transfer Time: 10 ms for personal computers; 20 ms for home appliances
